Welded Beam Attachment

Hardware>Beam Clamps>Part #100                                                                     Download Part #100 Data Sheet

Part #100
Welded Beam Attachment

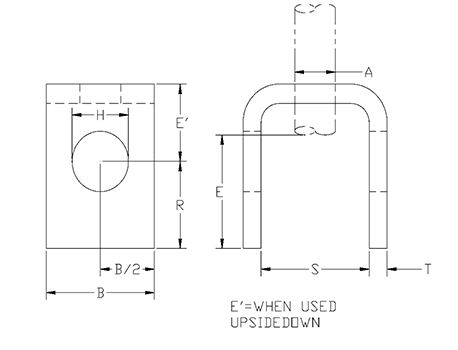

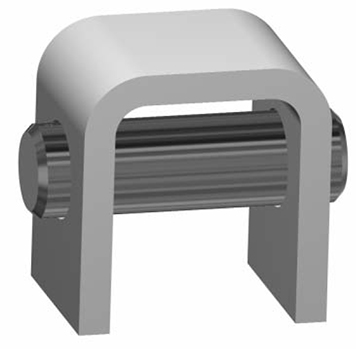

welded beam attachment                                 welded beam attachment drawing

Size Range: 3/8" to 3 1/2"
Material Types: Carbon Steel
Finish: Black, Galvanized, or coated to customer specifications
Applications: Recommended for attachment to bottom of steel where extreme loads are present and rod sizes are large
Approvals: Complies with Manufacturers Standardization Society SP-69 (Type 22)
How to Size: Size of attachments is determined by size of rod
Ordering: Specify rod size, part number, name and finish. Specify (with bolt and nut) if required for 1" rod size and smaller. Specify (with pin and cotter pins) if required for 1 1/4" rod size and larger.

Request a Quote
