Steel Yoke Pipe Roll

Hardware>Pipe Rollers>Part #536                                                                   Download Part #536 Data Sheet

Part #536
Adjustable Steel Yoke Pipe Roll

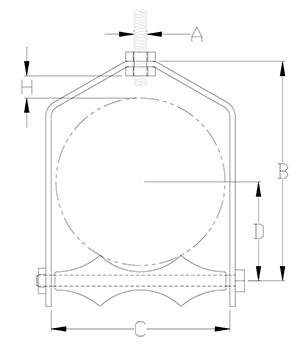

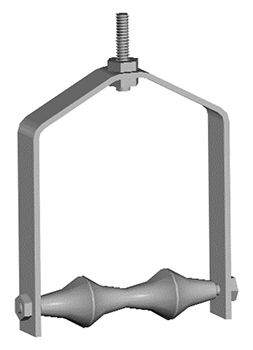

       steel yoke pipe roll                                             steel yoke pipe roll drawing

Size Range: 2 1/2” to 24" pipe.
Material: Cast iron roll, carbon steel yoke, roll rod, bolts and hex nuts.
Finish: Black, Galvanized, or coated to customer specifications
Applications: For suspension of pipe from a single rod where horizontal movement due to expansion and contraction may occur.
Approvals: Complies with Manufacturers Standardization Society SP-69 (Type 43)
How to Size: If roll is to support bare pipe, select the size directly from nominal pipe size. If used with a pipe covering select O.D. of protection saddle.
Ordering: Specify size of roll, part number, name and finish. Be sure to order oversized rolls when insulation and protection saddle are needed.
