Riser Pipe Clamp Special Design

Hardware>Pipe Clamps>Part #362                                                                     Download PDFDownload Part #362 Data Sheet

Part #362
Riser Pipe Clamp Special Design

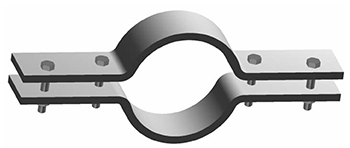

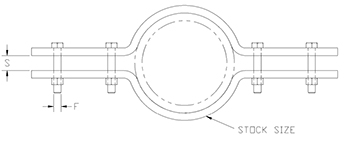

riser clamp special design                    riser clamp special design drawing

Size Range: Custom Sizes
Material: Carbon Steel, Chrome Molybdenum or Stainless Steel
Finish: Black, Galvanized, or coated to customer specifications
Applications: Riser clamps are used for the support of vertical piping. Load is carried by shear lugs which are welded to the pipe. (Shear lugs not provided.)
Maximum Temperature: As required
Ordering: Specify Part #362, material, exact pipe size, load, operating temperature, insulation thickness, C-C dimension, rod diameter, and if connected to a spring or rigid connection.

Request a Quote!
