Pipe Roll Base Plate

Hardware>Pipe Rollers>Part #510                                                                                       Download Part #510 Data Sheet

Part #510
Pipe Roll Base Plate

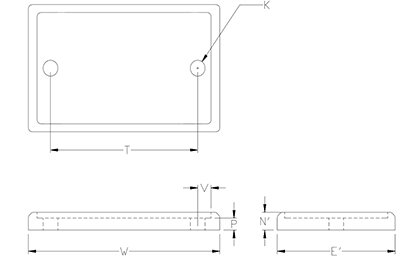

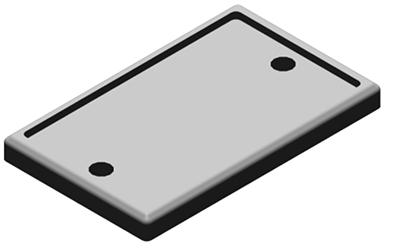

pipe roll base plate                                 pipe roll base plate drawing

Size Range: 2" to 42" pipe
Material: Cast iron roll and stand.
Finish: Black, Galvanized, or coated to customer specifications
Applications: (When used with Part #500) For support of pipe lines where longitudinal movement resulting from expansion and contraction may take place and where vertical and lateral adjustment during installation is necessary.
Approvals: Complies with Manufacturers Standardization Society SP-69 (Type 46)
Ordering: Specify pipe roll size in order to receive the correct plate size.
