Non-Standard Three Bolt Pipe Clamp

Hardware>Pipe Clamps>Part #363                                                                     Download PDFDownload Part #363 Data Sheet

Part #363
Non-Standard Three Bolt Pipe Clamp

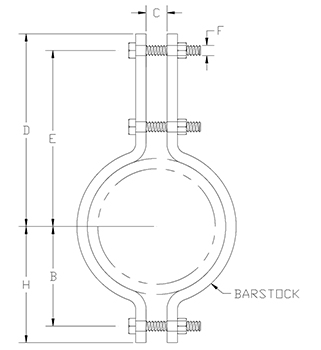

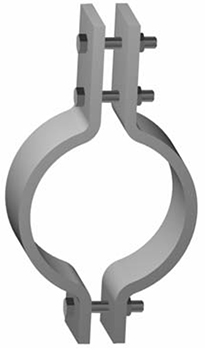

Nonstandard three bolt pipe clamp                                                      nonstandard three bolt pipe clamp drawing

Size Range: Custom Sizes
Material: Carbon Steel, Chrome Molybdenum or Stainless Steel
Finish: Black, Galvanized, or coated to customer specifications
Applications: Recommended for suspension of high temperature pipe requiring insulation.
Maximum Temperature: As required
Ordering: Specify Part #363, material type, pipe size, load, operating temperature, and insulation thickness. Alloy clamps, unless otherwise specified, will be furnished with alloy studs made from ASTM spec. A-193-B7 stud stock with the center third unthreaded and hex nuts.
