Insulation Shield

Hardware>Pipe Saddles & Supports>Part #615                                                                   Download Part #615 Data Sheet

Part #615
Insulation Shield

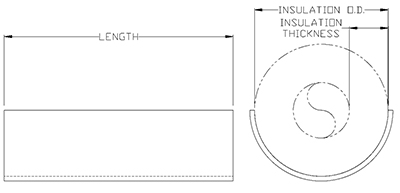

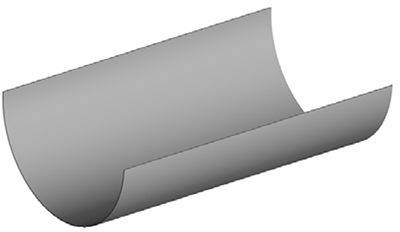

insulation shield                                 insulation shield drawing

Size Range: 1/2" to 24" pipe with 1/2”, 3/4” up to 1”, 1 1/2” and 2” thick insulation
Material: Carbon steel.
Finish: Black, Galvanized, or Painted.
Applications: Recommended for outside of foam or fiberglass insulation for distribution of loads to preclude crushing of insulation without breaking the vapor barrier. May be used with Parts #380 and #381.
Approvals: Complies with Manufacturers Standardization Society SP-69 (Type 40)
Ordering: Specify size, part name, part number, and finish. Sizes other than shown on data table available upon request.
