Clevis Hanger Insulated

Hardware>Pipe Clamps>Part #382                                                                     Download PDFDownload Part #382 Data Sheet

Part #382
Clevis Hanger Insulated

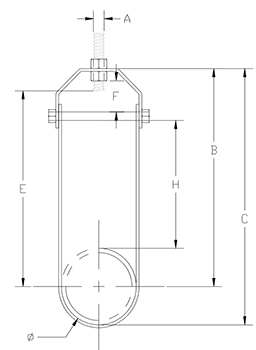

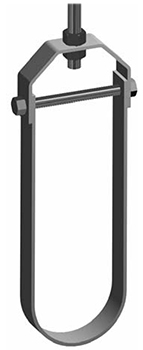

clevis hanger insulated                                                 clevis hanger insulated drawing

Size Range: 3/4" to 12" Other sizes available upon request. Refer to Rilco's Insulated Pipe Support Catalog for outside dimensions of insulated pipe supports.
Material: Carbon Steel or Stainless Steel
Finish: Black, Galvanized, or coated to customer specifications
Applications: Recommended for suspension of stationary pipes
Approvals: Complies with Manufacturers Standardization Society SP-69 (Type 1)
Maximum Temperature: 450°F (323°C)
Ordering: Specify pipe size, part number, name and finish
