Beam Lug Attachment One Hole

Hardware>Beam Clamps>Part #105                                                                    Download Part #105 Data Sheet

Part #105
Beam Lug Attachment One Hole

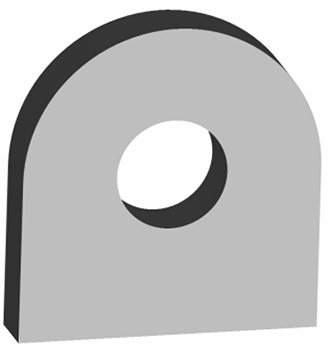

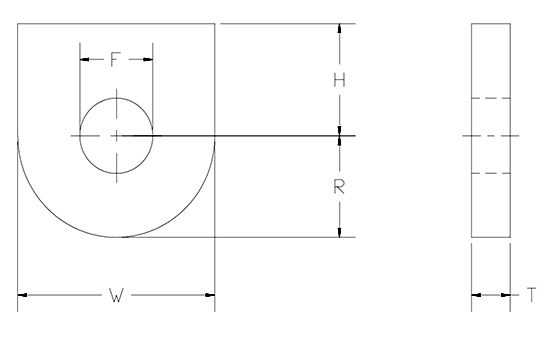

beam lug attachment one hole                                 beam lug attachment one hole drawing

Size Range: Short lug is available for use with 1/2” to 3 3/4” rod; long lug may be used with 1/2” through 2“ rod.
Material Types: Carbon Steel
Finish: Black, Galvanized, or coated to customer specifications
Applications: For attachment to structural steel in conjunction with Part #290 clevis and with Type B and C spring hanger.
Approvals: Complies with Manufacturers Standardization Society SP-69 (Type 57)
Ordering: Specify rod size, part number, name, finish, and whether short or long lug is required.
