Adjustable Pipe Roll Support

Hardware>Pipe Rollers>Part #540                                                                                  Download Part #540 Data Sheet

Part #540
Adjustable Pipe Roll Support

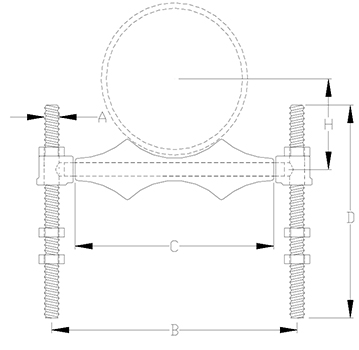

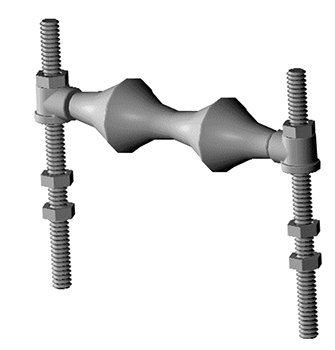

       adjustable pipe roll support                                             adjustable pipe roll support drawing

Size Range: 1” to 30" pipe.
Material: Cast iron roll and sockets, Carbon Steel roll rod, continuous thread rods and hex nuts.
Finish: Black, Galvanized, or coated to customer specifications
Applications: For support of pipe where horizontal movement due to expansion and contraction may occur and where vertical adjustment up to 6 inches may be required.
Approvals: Complies with Manufacturers Standardization Society SP-69 (Type 41)
How to Size: If roll is to support bare pipe, select the size directly from nominal pipe size. If used with a pipe covering select O.D. of protection saddle.
Ordering: Specify size of roll, part number, name and finish. Be sure to order oversized rolls when insulation and protection saddle are needed.
